How to Integrate Any MCP Server into n8n AI Agent Workflows: A Comprehensive Guide

Introduction: Why Combine MCP Servers with n8n?

Model Context Protocol (MCP) servers act as critical bridges between AI models and external data sources. By integrating them with n8n—a powerful workflow automation platform—developers can build intelligent agents capable of real-time interactions with databases, APIs, and cloud services. This guide provides a step-by-step walkthrough for establishing this integration from scratch.

Prerequisites Checklist

Before starting, ensure you have:

1. Deployment Environment: A running n8n instance (self-hosted or cloud-based)
2. Permissions: Access to install community nodes
3. MCP Service: An MCP server from Smithery.ai
4. Credentials Management: Valid API keys for your chosen services

Phase 1: Selecting and Configuring an MCP Server

1.1 Choosing the Right MCP Server

Visit the Smithery Registry to explore over 20 mainstream services:

• Databases: Supabase, PostgreSQL
• Search Engines: Brave Search, Google Custom Search
• Dev Tools: GitHub, GitLab
• Cloud Services: AWS Lambda, Firebase

Selection Criteria:

• Real-time database queries → Choose Supabase
• Web data retrieval → Opt for Brave Search

1.2 Hands-On Credential Configuration (Supabase Example)

1. Log in to the Smithery dashboard
2. Navigate to the Supabase MCP service page
3. Click “Generate Access Token”
4. Record critical details:

   STDIO Connection: npx -y @supabase/mcp-server-supabase@latest
   Environment Variables: SUPABASE_ACCESS_TOKEN=your_token


Key Notes:

• Configuration parameters are available in the “Connection JSON” section
• Use password managers to store sensitive data securely

Phase 2: Setting Up the n8n Environment

2.1 Installing Community Nodes

Since native MCP support isn’t available, install the third-party n8n-nodes-mcp package:

Installation Methods Comparison

Verification: Search for “MCP Client” in the node palette—appearance confirms success.

2.2 Security Best Practices

1. Create dedicated API keys for MCP nodes
2. Store credentials using n8n’s environment variables
3. Monitor updates for the npm package

Phase 3: Node Configuration Deep Dive

3.1 Connection Parameters Setup

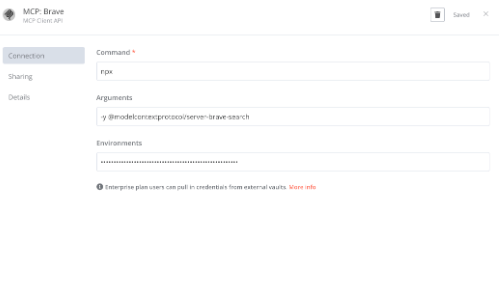

Brave Search Configuration Example:

Connection Type: Command Line (STDIO)
Command: npx
Arguments: -y @modelcontextprotocol/server-brave-search
Environment Variables:
  BRAVE_API_KEY=your_actual_key
  RESULT_LIMIT=10

Parameter Insights:

• -y flag auto-confirms installation prompts
• Separate multiple variables with line breaks
• Use JSON formatting for complex parameters

3.2 Output Parser Configuration

Ensure AI agents correctly interpret response data:

Sample JSON Schema

{
  "type": "object",
  "required": ["results"],
  "properties": {
    "query_time": {"type": "number"},
    "results": {
      "type": "array",
      "items": {
        "type": "object",
        "properties": {
          "title": {"type": "string"},
          "snippet": {"type": "string"},
          "url": {"type": "string"}
        }
      }
    }
  }
}

Validation Tools:

• JSON Schema Validator
• VSCode JSON Schema extensions

Phase 4: Building End-to-End Workflows

4.1 Standard Workflow Architecture

graph LR
A[Webhook Trigger] --> B[MCP Client Node]
B --> C[AI Decision Node]
C --> D[Output Parser]
D --> E[Database Writer Node]
E --> F[Notification Node]

4.2 Real-World Applications

1. Smart Customer Support: Fetch real-time product data via Brave Search
2. Live Dashboards: Pull metrics from Supabase periodically
3. Automated Reporting: Generate weekly summaries from GitHub commits

Phase 5: Troubleshooting Guide

5.1 Common Issues & Solutions

5.2 Log Analysis Tips

In n8n debug mode, focus on:

• STDIO Outputs: Inspect raw data formats
• Variable Injection: Confirm credential substitution
• Execution Timing: Detect timeout occurrences

Phase 6: Advanced Optimization Strategies

6.1 Performance Tuning

• Enable caching for high-frequency queries
• Use n8n’s queue system for batch processing
• Implement auto-retry policies (exponential backoff recommended)

6.2 Security Enhancements

1. Create separate service accounts per MCP server
2. Activate n8n’s audit logging
3. Rotate API keys periodically

Frequently Asked Questions (FAQ)

Q1: Why Use STDIO Connection Mode?

STDIO (Standard Input/Output) enables direct process communication, ideal for local deployments. Compared to HTTP, it eliminates network overhead and simplifies debugging.

Q2: Can I Connect Multiple MCP Servers Simultaneously?

Yes. Two approaches:

1. Create dedicated nodes per service
2. Manage configurations using environment variable groups

Q3: How to Handle Unstructured Response Data?

Add a preprocessing node using regex or NLP tools (e.g., spaCy) for data cleansing.

Q4: Are Community Nodes Secure?

• Install only from npm’s official registry
• Check package download stats (n8n-nodes-mcp averages 1.5k+ weekly downloads)
• Review the GitHub repository’s maintenance status

Future Developments

With Model Context Protocol 2.0 on the horizon, expect:

• Native gRPC support
• Automatic schema discovery
• Visual service orchestration interfaces

Further Learning Resources

• Smithery Service Catalog – Explore more MCP services
• n8n Community Docs – Official setup guides
• Protocol Specification – Technical deep dive

By systematically implementing this guide, you’ve mastered the core techniques for integrating MCP services into intelligent workflows. Start with simple queries and gradually expand to complex business logic to fully leverage AI-automation synergies.
